I recently had some time to play with VCDS and a friend’s RNS 315 navigation. By default there is no test mode or hidden menu with extra features like on some other Volkswagen systems.

Using VCDS we can however (temporarily) enable the Developer mode.



To do this you need to go to Select Control Module:

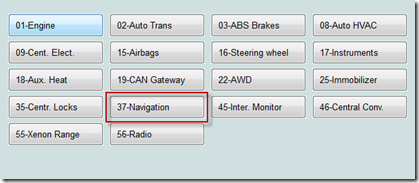

Then select 37-Navigation:

SNAGHTML1b76a5

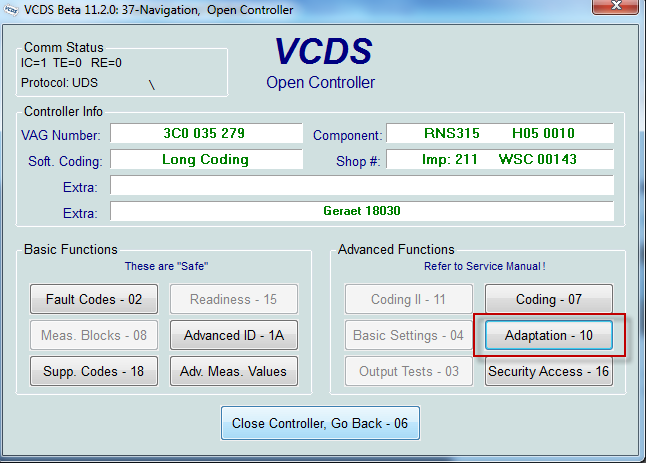

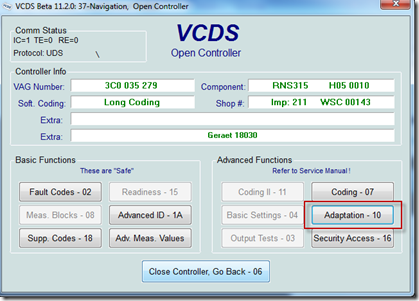

Then select Adaptation:

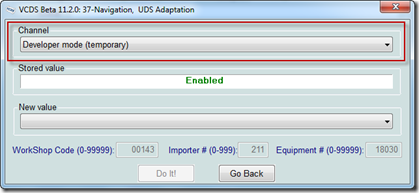

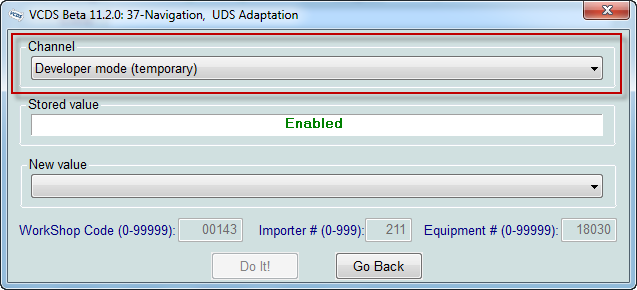

Select Channel “Developer mode (temporary)” (Permanent is not accepted):

SNAGHTML1ce8b9[4]

Select Enabled as New value and click Do It!

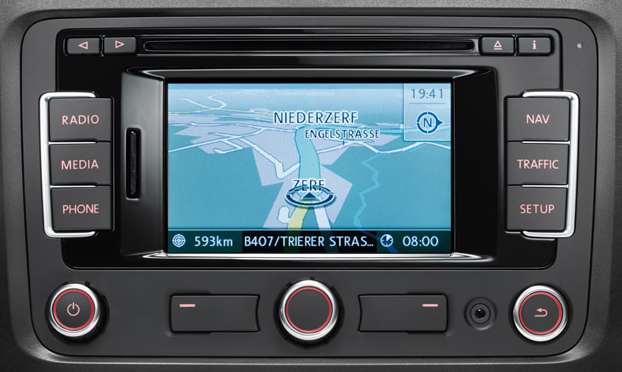

Now hold the Setup button on the RNS315 for about 20 seconds and you will enter Developer Mode:

IMG_0147

Developer Mode has several sub menus, here are some screenshots:

IMG_0148

IMG_0149

IMG_0150

IMG_0151

IMG_0152

IMG_0153

IMG_0154

IMG_0155

IMG_0156

IMG_0144
